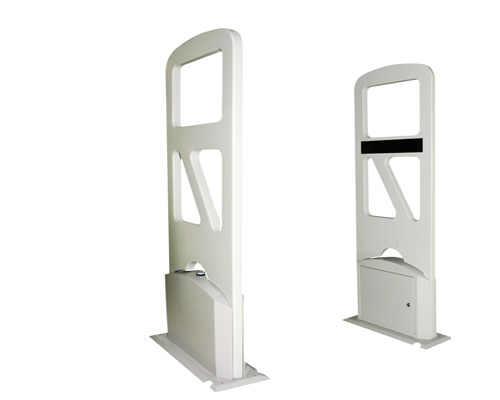

    HYL20 is a high performance ISO15693 protocol HF tag channel device. Designed upon fully self-intellectual property, it supports fast tag anti-collision operation with high identification rate, 4 line infrared motion detection, real-time clock, extensional tag data storage and EAS function. It can be directly connected to host, controller and other relative equipments. It can be widely applied in many RFID application systems such as logistics, open channel conference attendance system, open access control and industrial production process control.

    HF(13.56MHZ  ISO15693) RFID Gate Reader

    Support mainstream ISO15693 protocol tag (TI, PHILIPS, ST,INFINEON, FUJITSU, EM…);
    Low power dissipation design with RF output power over 4Watt;
    Advanced anti-collision algorithm, high identification speed up to 50tags/s;
    Built-in TX/RX antenna and channel width up to 150CM;
    4 line infrared motion detection;
    Built-in real-time clock and about 30000 events storage capacity;
    Support RS232/RS485 and TCP/IP interface;
    Optional 2D antenna mode supporting 2D tag operation;

    Hyintech Team
    Supply You Best Products,
    Free Detailed Manual and SDK
    Most Professional Technical Support
    Be Your Best Friend and Loyal Long Term Partner.

ITEM

SYMBOL

VALUE

UNIT

Color



Light Grey



Height1

H

150

cm

Width2

W

54

cm

Thickness3

T

3.5

cm

Weight4

WT

20

kg

Power Supply

VAC

220/50

V/Hz

Current.

IAC

90

mA

  • Library RFID System
    Library RFID System
    HYL20 RFID Gate reader with sensitive and excellent multi tag reading capability
    providing library the most secure EAS resolution for library.
  • RFID attendence Resolution and People Locating inside building
    RFID attendence Resolution and People Locating inside building
    HYL20 RFID Gate reader with sensitive tag reading capability and infrared detector,provide the most efficient tools for anttendence management and locating inside building system.
Could HYL20 Detect the Movement direction, like enter or exit ?
Answers
Yes, It could.
There is the Infra-detector, which could detect the movement direction. Could be used for counting and detecting of Exit and Entery.

What's the difference betweem Hyintech HF RFID Gate and other HF RFID Gate which look like the same.
Answers
Hyintech HF Gate reader HYL20 is based on high capablity circuit design, which could operation 365 days * 24 hours without
break.Devices could be running for years without any maintaince. During years of upgration, our deivce already be the most mature one with high sensitivity.Some of these device from other supplier, using the low cost element,the missing rate of detecting is high,expecially in liibrary Managment system.Not all the other RFID HF gate reader can be as durable as HYL20.
As for the shield, we are sourcing from the public shield market. Other supplier may sourcing from the same one. But circuit design are different.
