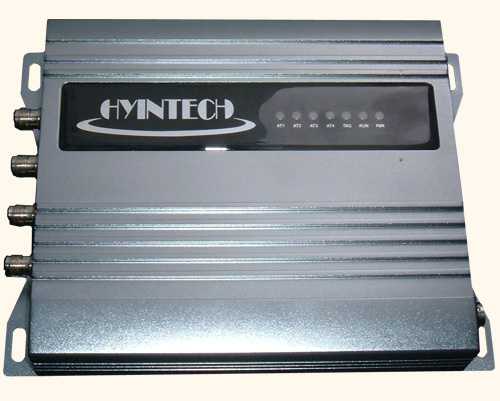

HYB804 ( Version UHFReader28 ) is a high performance UHF RFID Separated reader&Writer, support 4 external antennas. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
902~928MHz frequency band(frequency customization optional)
FHSS or Fix Frequency transmission
RF output power up to 30dbm(adjustable)
4 TNC antenna port
Support auto-running, answer and trigger work mode
Support EPC and TID inventory
Low power dissipation with single +9 DC power supply
Support RS232, RS485, TCPIP with other interface optional;
Built-in LED, Buzzer, GPIO and Relay;
High reliability design.
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
16 |
V |
|
Operating Temp. |
TOPR |
-10~+55 |
℃ |
|
Storage Temp. |
TSTR |
-20~+75 |
℃ |
l Electrical and Mechanical Specification
Under TA＝
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
8 |
9 |
12 |
V |
|
Current Dissipation |
IC |
|
600 |
1500 |
mA |
|
Frequency |
FREQ |
902 |
|
928 |
MHz |
|
Size |
Size |
|
230x170x40 |
|
mm |
1．Power (DC JACK)
|
No. |
Symbol |
Comment |
|
Central |
PWR |
+9VDC |
|
Outer |
GND |
Ground |
