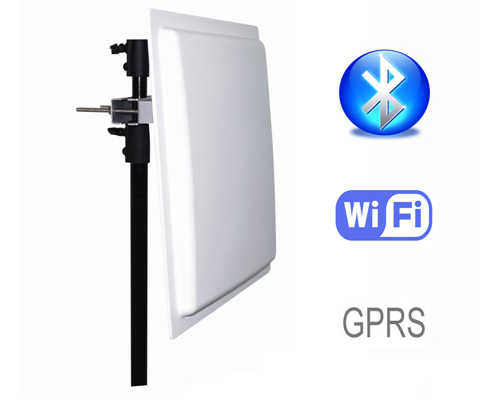

    HYB615 (Version UHFReader06) is a high performance UHF RFID integrated reader&Writer. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.With Optional Interface GPRS/WIFI/BT.

    Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
    860~928MHz frequency band(frequency customization optional);
    FHSS or Fix Frequency transmission;
    RF output power up to 30dbm(adjustable);
    12dbi antenna optional with Reading distance up to 15 meter;
    Support auto-running, interactive and trigger-activating work mode;
    Low power dissipation with single +9 DC power supply;
    Support RS232, RS485, Wiegand interface;

l        Absolute Maximum Rating

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

16

V

Operating Temp.

TOPR

-10~+55

Storage Temp.

TSTR

-20~+75

l        Electrical and Mechanical Specification

Under TA25℃VCC+9V unless specified

ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

8

9

12

V

Current Dissipation

IC



350

650

mA

Frequency

FREQ

860



928

MHz

Interface

Item

Comment

Red

+9V

Black

GND

Yellow

Wiegand DATA0

Blue

Wiegand DATA1

Purple

RS485 R+

Orange

RS485 R-

Brown

GND

White

RS232 RXD

Green

RS232 TXD

Grey

Trigger inputTTL level
