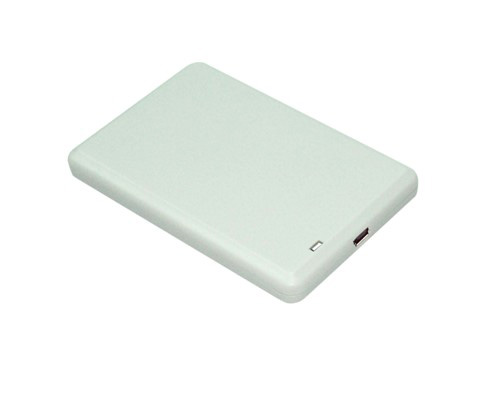

   HYB505U(Version UHFReader06) is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.


    Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
    860~928MHz frequency band(frequency customization optional);
    FHSS or Fix Frequency transmission;
    RF output power up to 10dbm(adjustable);
    No external power source needed;
    Built-in antenna with effect distance up to 200mm*;
    Support USB1.1 interface with VSP(Virtual Serial Port) or HID mode;
    Slim outline;
    Provide SDK and demo software to facilitate further development.

l        Absolute Maximum Rating

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

6

V

Operating Temp.

TOPR

-10~+60

Storage Temp.

TSTR

-25~+80



l        Electrical and Mechanical Specification

Under TA25℃VCC+5V unless specified

ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

4.5

5

5.5

V

Current Dissipation

IC



120

200

mA

Frequency

FREQ

860



928

MHz

Effective Distance*

Dis

0

100

200

mm
