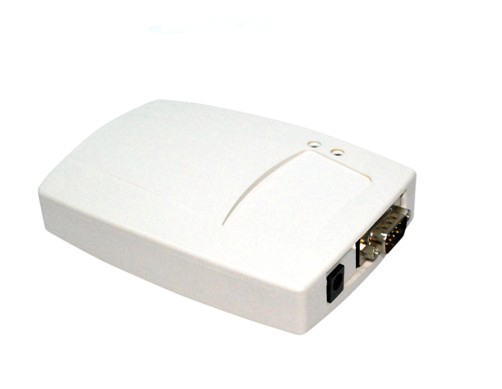

HYB506R (Version UHFReader06)is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.
FEATURES
Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
860~928MHz frequency band(frequency customization optional);
FHSS or Fix Frequency transmission;
RF output power up to 30dbm(adjustable);
Built-in wideband antenna with effect distance up to 500mm*;
Support auto-running and interactive work mode;
Low power dissipation with single +9V DC power supply;
Support RS232 and Wiegand interface;
Output format and parameters configurable;
Provide SDK and demo software to facilitate further development.
CHARACTERISTICS
l Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
15 |
V |
|
Operating Temp. |
TOPR |
-10~+60 |
℃ |
|
Storage Temp. |
TSTR |
-25~+80 |
℃ |
l Electrical and Mechanical Specification
Under TA＝
|
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
|
Power Supply |
VCC |
6 |
9 |
12 |
V |
|
Current Dissipation |
IC |
|
400 |
700 |
mA |
|
Frequency |
FREQ |
860 |
|
928 |
MHz |
|
Effective Distance* |
Dis |
0 |
100 |
500 |
|
* Effective distance depends on protocol, tag and environment.
