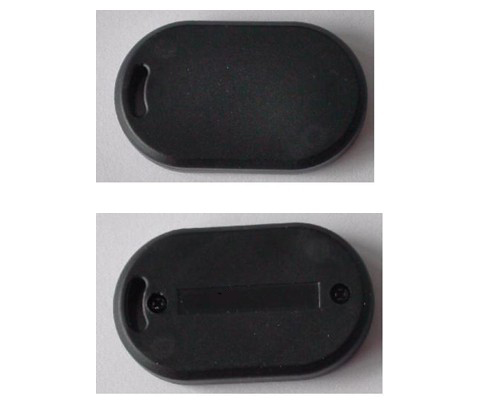

HYAT5

←Left
  • HYAT5
    1/1HYAT5
Right→
  • Long range automatic identification
  • Anti collision capability
  • High speed Multi channel identification capability
  • Encrypted and certified to assure data safety, preventive of eavesdropping and intentional decoding
  • Stable, work temperature range from -40℃ to 80℃, anti-impact design
  • Applied 0.18uM technology to reduce cost
  • Ultra low RF transmission power consumption, healthier and safer
  • Work at globally free 2.45GHz ISM
  • Applied design techniques of anti-interferences and thunder
  • No requirement for sources of interferenc

Frequency

2.45G  ISM Microwave band

Antenna polarizing

Round polarization

Shell Material

High Temperature Modified Alloy Plastic

RF Power

1mW

Encrypt

DES

Range

3M～80M

Angle

360°

Battery Life

2.5  years(Capable to replace battery)

Operation Temperature

-40℃～+85℃

Operation    Relative Humidity

10%～95%

Size

50mm X 30mm X 10mm

Weight

30 G
