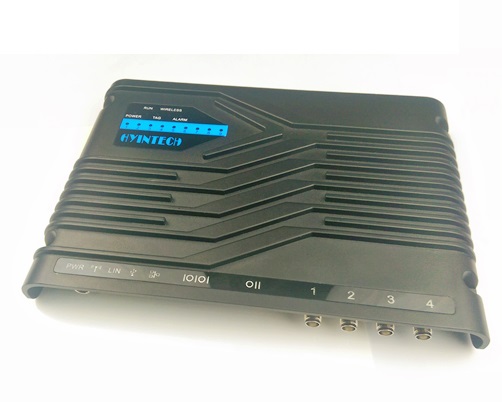

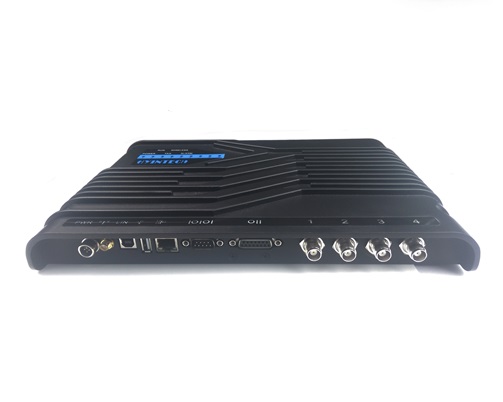

HYV904

←Left
  • HYV904
    1/2HYV904
  • HYV904
    2/2HYV904
Right→




* Based On Impinj R2000


  Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;


  860~868MHz/902~928MHz frequency band(frequency customization optional);


  FHSS or Fix Frequency transmission;


  RF output power up to 30dbm(adjustable);


  4 TNC antenna port with antenna auto-tuning and failure-detection;


  * Support auto-running, answer, trigger and real-time-inventory work mode;


  * Tag buffer size up to 800PCS (Max. 496bits EPC length);


  Support EPC and TID inventory;


  Low power dissipation with single +9 DC power supply;


  * Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;


  *  High reliability design;


  Support on-the-site firmware upgrading and optional Wince or Linux Operation System.


GENERAL DESCRIPTION

HYV904 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on Patented efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.


CHARACTERISTICS

l  Absolute Maximum Rating

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

16

V

Operating Temp.

TOPR

-10~+60

Storage Temp.

TSTR

-20~+75







l  Electrical and Mechanical Specification

Under TA25VCC+9V unless specified

ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

8

9

12

V

Current Dissipation

IC



800

1500

mA

Frequency

FREQ

902

902~928

928

MHz

Size

Size



310×210×41



mm
