Rugged Handheld Computer

Feedback

Expecting your recommendation for us to supply you better service

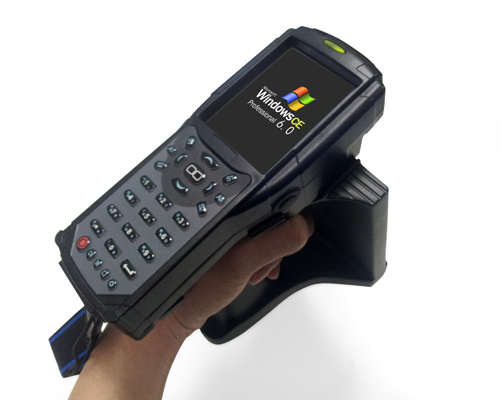

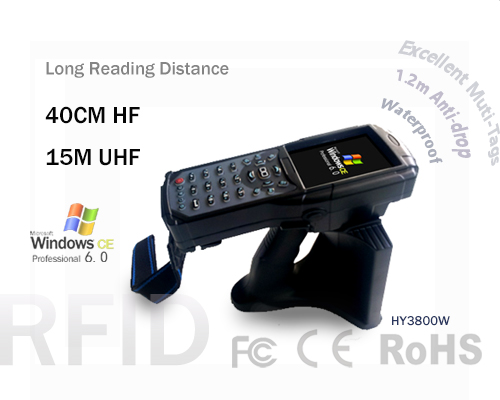

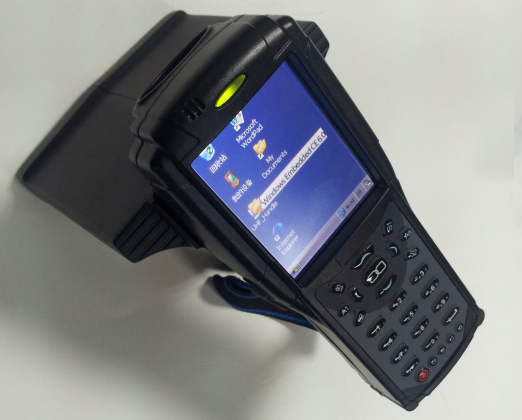

HY3800W

←Left
  • HY3800W
    1/4HY3800W
  • HY3800W
    2/4HY3800W
  • HY3800W
    3/4HY3800W
  • HY3800W
    4/4HY3800W
Right→

1 Compact structure design, multi internal plastic buffer, sustain 1. 2 meters drop, Water proof, IP65 Industrial Standard

2 Super Power Battery 7.4V,2500MAH/3.7V,5000MAH, Long Working Time. Sustain consecutive Working above 20 hours (depends on specific situation), 10 days standby. Extended battery life.

3 Stable PXA3XX CPU,efficiency data processing

4 Readable under sun-shine 3.5 inch LCD

5 Multi-Thread WinCE 6.0 R3 System

6 Hardware extendable functions

7 High capability Barcode scanner(optional) engine, Designed for 10 years using.

8 Sensitive RFID (LF/HF/UHF) Module

9 Wifi ( Standard), GPRS/3G(optional),GPS/Optional, Camera/Optional

10 Wireless Charging(Optional)

11 Support further software development, SDK(Software Development Kit ) Provided

CPU



PXA3XX  (624MHZ)

OS



  Windows CE 6.0 R3 (Language Customizable)

Memory

RAM

128MB

F-ROM

128MB/256MB

Barcode Scan engine

Scanner

1D Laser Barcode Scanner

Module

 Opticon /Moto

Scan Speed

100 times per second +-2 times

Scan Distance

60-650mm

Angle

54±5

Width

60-360mm At Max Reading Distance

Resolution

0.127-1.00mm

Code

UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded;

RFID

LF 125KHZ

 Max Reading 10cm

LF 134.2KHZ

Max Reading 10cm

HF 13.56MHZ

Max Reading 35cm

UHF 860-928M

Max Reading 1000cm

LCD

Type

TFT-LED QVGA Touch Screen

Resolution

QVGA240X320Readable Under Sun Shine

Size

3.5 inch

Input

Soft Keyboard

English, Chinese Input(Multi Language Customizable)

Hard Keyboard

30 Key

ScanKey

 At the Middle

Function Modules

Standard

WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5

Optional

BT V2.1+EDR

Optional

Internal 3M camera

Optional

Internal GPS Signal 48,Accuration 2.5mSpeed below 0.01m/s

Optional

Internal LF/HF/UHF RFID Reader

Optional

Internal GPRS/3G WCDMA

Power

   Main Power

7.4V,2500mah/3.7V 5000mah Li-ion

RTC Battery

Chargeable Button battery

Standby

10 days

Working

Above 20 hours, depends on specific situation

Extension



Micro SD/TF Slot

Industrial Standard



IP65

Size

Human Engineering Design

190(L)×78(W)×40(T) mm

Weight



430g( Including Battery)

Working Environment

Operation Temp.

-15~+50

Storable Temp.

-20~+60

Working Wet

 5-95%

Storage Wet

 5-95%

Anti-Drop

50 inch(1.2Meters)Multi Drop

  • Anti-thief UHF RFID Animal Management
    Anti-thief UHF RFID Animal Management
     For animal anti-thief, Hyintech HY3800WU,HYB804 Reader& HYTSA8070 Tags provide a more efficient way with the ourstanding feature of products. They could be your most trustful guard and manager.
  • Long distance UHF RFID Animal Management
    Long distance UHF RFID Animal Management
    HY3800WU,HYB804,designed for harsh enviroment,is with capability of reading tags above 200 pieces at the same time at long distance.
  • RFID Jewelry Management
    RFID Jewelry Management

    HY3800WH with sensitive and durable design,with excellent performance of reading HF(ISO15693) tag .
    make RFID Jewelry management a feasible way.

  • Library RFID System
    Library RFID System
    HYL20 RFID Gate reader with sensitive and excellent multi tag reading capability
    providing library the most secure EAS resolution for library.

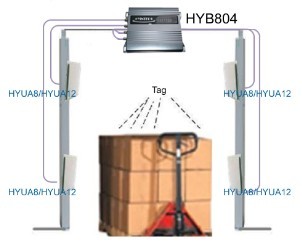

  • UHF RFID Production&Inventory Management
    UHF RFID Production&Inventory Management
    Hyintech RFID Reader&Writer HY3800WU,HYB804,HYUT7323 Tags,make inventory management into a more efficient way.It could save you a a lot of human labour.
  • RFID Wine Management&Anti-Fake Technology
    RFID Wine Management&Anti-Fake Technology
    Wine Management and Anti-Fake Development Kit & Guidence
  • RFID Drug Management&Anti-Fake
    RFID Drug Management&Anti-Fake
    Hyintech RFID Reader&Tags,make drug production management and counter-feit into a more efficient way.
  • Laundry Management
    Laundry Management

    Hyintech RFID Reader&Tags,make laundry management automation into a feasible and efficient way.
